Roller Chain Sprocket for ANSI 40 Chain, 48 Teeth, for 5/8" Shaft Diameter

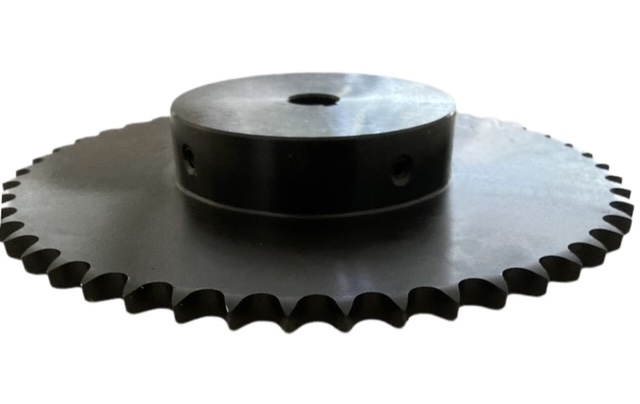

#40 Roller Chain Sprocket, Type B, 48 Tooth 5/8" Bore 40B48-5/8 - Image 2

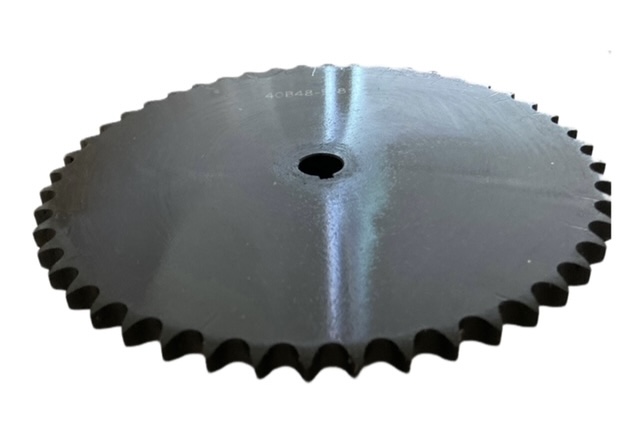

#40 Roller Chain Sprocket, Type B, 48 Tooth 5/8" Bore 40B48-5/8 - Image 3

#40 Roller Chain Sprocket, Type B, 48 Tooth 5/8″ Bore 40B48-5/8

  • SKU: 40B48-5/8
Bulk Order Quotes
No Minimum Orders
Fast & Free Shipping
US Based Stock

$30.25 – $115.00

View Cart
Datasheets
  • For Chain Type

    Roller
    For Strand Type

    Single
    Material

    Steel
    For Roller Chain

    Trade Number

    40
    Standard

    ANSI
    Pitch

    1/2“
    Number of Teeth

    48
    OD

    7 15/16“
    Bore Type

    Finished
    For Shaft Diameter

    5/8“
    Keyway

    Width

    3/16“
    Depth

    3/32“
    For Shaft Type

    Keyed
    Hub Diameter

    3 1/2“
    ID

    5/8“
    Includes

    Two Set Screws
    Overall Width

    1 1/8“
    Shaft Mount Type

    Set Screw
    Sprocket Type

    Drive

Additional information

Weight 5.9375 lbs
Inner Diameter

Material

Pack Size - Bigger Packs, Bigger Savings

, ,

Series

Size

#40
Teeth

48 Tooth
Chain Size

#40
